Concepts
Blended is Lot-centric, meaning activities are tracked by Lot. A single Lot may live within one or many vessels, but we assume that all liquid is homogeneous from a composition perspective.
Vessels are optional. Users may assign vessel(s) to a Lot, or Lots may exist within Blended without an associated vessel. Being in a vessel or not has no bearing on your ability to perform activities or write work orders against that Lot.
A Note on Data Entry
Blended makes no distinction between data entered directly or via work orders. Use whichever process is desirable within your workflow. Every workflow available via work orders can be completed directly.
Production View
Viewing Wine Lots
Blended is organized through Tabs that represent Stages within your production protocols. The tabs shown in Production will be a superset of all stages contained within active protocols. Lots will also appear in the All Lots tab, as well as their corresponding stage tab.
Tab Naming
Use consistent naming conventions in your production protocols to avoid redundant tabs.
Intake and Topping
Intake will always appear on the Processing tab. Users have the option to add the Intake table to any tab using the Edit Tab functionality shown below. To Edit Tabs, use the pencil icon located to the right of your last tab.
The Topping table can also be added to any tab. The Topping table displays the current designated topping Lots and their reserved volumes. Users have the option to add the Topping table to any tab using the Edit Tab functionality shown below. To Edit Tabs, use the pencil icon located to the right of your last tab.
Restore Defaults
Within the edit tabs menu, you will see a button called Restore Defaults. If you've made significant changes to your protocol tabs, clicking this button will take a new superset of active tabs across your protocols.
Production Table Controls

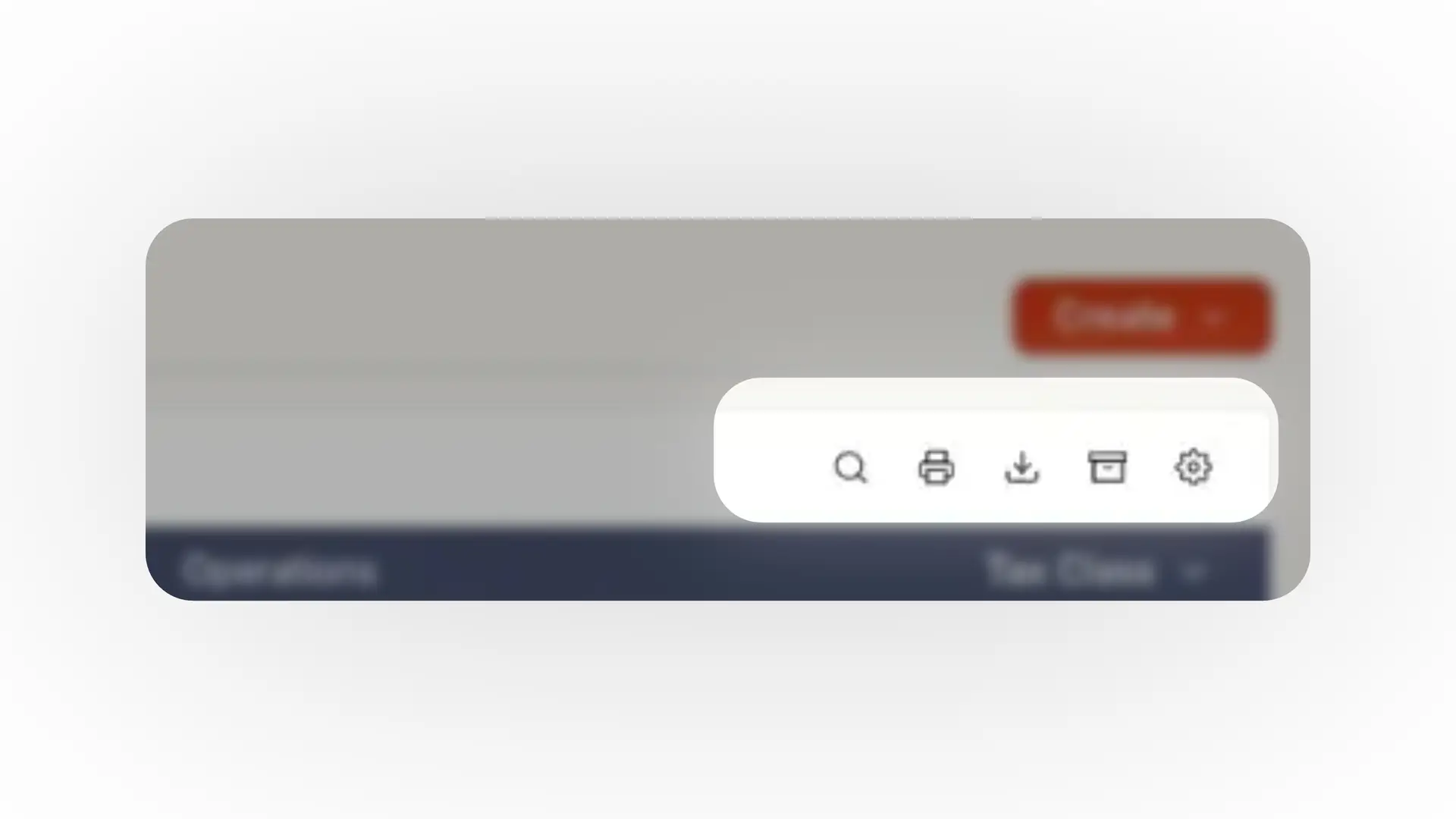

Table controls are located in the top right-hand corner of the production table. In order from left to right, they are
Search
Print
Download
Archive
Settings
Settings
Tailor the data displayed in any table by accessing the settings. Click a column name to add it to the display or click a checked column to remove it. Selected columns are Tab specific and saved within a single user session.
Filter Table Data
The magnifying glass icon is a search. Locate specific lots or data points by using the search bar or filter options within any table. Enter keywords or select predefined criteria to narrow the displayed data.
Use the Print icon to print a copy of the table as it is displayed.
Download
Use the download icon to download a CSV of the table. Download will ignore any pagination and will download the entire relevant dataset. Any filters you apply to the table before downloading will limit the data being downloaded.
Archive
The filing box icon will shift the table into Archive. The data displayed will be any Lots within the current stage that are no longer active, either because they have no volume or were archived for events such as bottling.
Column Controls
Sort Table Data
Organize table data by clicking on any column header to sort. Arrange lots alphabetically, numerically, or chronologically for easier analysis. Drag column headers to reorder them.
Group Table Data
Organize and summarize table data by clicking a column header and selecting the "Group" option. This creates collapsible groups based on column values for a structured overview.
Filter Table Data
Click on a column header and choose a filter option to filter. Any columns with active filters will display a light blue column header color to distinguish them.
Lot Detail Navigation
Access Lot Details
Explore comprehensive information and history for a specific wine lot by clicking its name in the table. This navigates to a dedicated page displaying summary, additions, operations, chemistry, history, composition, barrels, costs, and protocols.
Edit Lot Information
Modify key descriptive data for a specific wine lot by locating the "Lot Info" box within the lot details view and clicking the "Edit" button. Adjust details such as lot name, tax class, units, volume, protocol, and tags.
View Lot Summary
Review a lot's current status and key metrics by selecting the "Summary" tab within the lot details view. This displays essential information, recent measurements, and a chronological event stream.
View Lot Chemistry
Review the chemical analysis history of a wine lot by selecting the "Chemistry" tab within the lot details view. This displays all recorded chemical measurements and analyses, often with graphs to visualize trends.
View Lot History
See a chronological record of all events and actions for a wine lot by selecting the "History" tab within the lot details view. This displays the event stream, providing a comprehensive log of operations, additions, and measurements.
